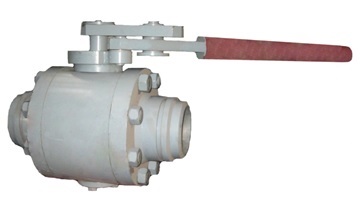

Purpose and Scope

Used as locking arms for installation on processing lines carrying version operating mediums:

• material version C — non-aggressive natural gas, oil, oil products, ammonia, inert gasses, carbon dioxide and other non-aggressive mediums with temperature  from -60ºС to +100ºС (possible version to +250ºС);
• material version H and M —gases containing aggressive agents  (hydrogen, oxygen, sulfur,   hydrogen sulfide, etc.) and flow aggressive mediums – solutions of acids and alkalis, etc. at the temperature from -60°C to +250°C.

Advantages and details of construction:

• valve construction is modular, it consists of one-piece body and two joints connected with body by stud bolts that provides its maintainability;
• using of spring-load portable seats in conjunction with a double-beat plug provides valves hermiticity of class “A” during the whole period of their operation;
• using of the system “broken level valve” on manual drive (for DN100) allows increasing rotation moment twice while “opening-closing” valve;
• support bearings are made of metal-fluoroplastic belt and provide reliable operation during the whole period of operation, do not need lubrication and carry unit loads when operate to 100MPa (1000 kgf/cm²);
• globe valves are made with pneumatic and electric drive of both above ground and under ground version;
• globe valves with pneumatic drive are completed with VCM ( valve control module) with integral limit switches on 24 V and 110 V.

Technical Characteristics

Material category*

*By individual order it is possible to manufacture globe valves of steel 06XH28MDT and of other corrosion-resisting alloys as well as valve version with metal-to metal seal for abrasive and high temperature medium.

Main dimensions and drawings

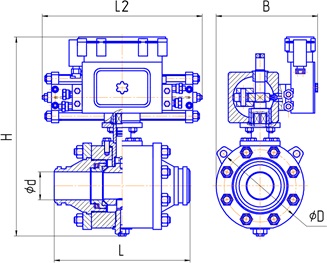

Globe valve with manual drive of above ground version*	Globe valve with pneumatic drive and valve control module of above ground version*

*globe valves of under ground version are available for order.

Basic globe valve versions. Scheme of conventional symbol

Example of conventional symbol at the time of order

Valve model D with nominal diameter  DN100 and nominal pressure PN8,0 MPа, valve material  carbon steel, climatic version HL1, with pneumatic drive and valve control unit with 110 V, natural gas for operating medium to +80ºС.

Valve D-100-80-С-P  (on welding, HL1, with valve control module, 110V, natural gas up to +80ºС) TU U 29.1-35907383-001:2008

Notes:

1. Joining type, climatic version, requirements for compliment of pneumatic and electric drives, peculiarities of operating medium are named in brackets after main description of a valve.

2. To order valves with parameters which are different from ones shown in the table please fill in check list and send to us, so we can confirm our ability to meet your requirements.
